Dockerfile构建java运行环境

Maven&Java

wget https://archive.apache.org/dist/maven/maven-3/3.8.6/binaries/apache-maven-3.8.6-bin.tar.gz --no-check-certificate

https://www.oracle.com/java/technologies/downloads/#java8

Dockerfile

FROM docker.io/centos:7
MAINTAINER lklbjn
RUN yum -y install vim
RUN yum install glibc-langpack-zh
RUN yum install kde-l10n-Chinese glibc-common -y
RUN localedef -c -f UTF-8 -i zh_CN zh_CN.utf8
# 安装Python
# RUN yum update -y && yum install -y python3
ADD jdk-8u351-linux-x64.tar.gz /opt/localhost/
ADD apache-maven-3.8.6-bin.tar.gz /opt/localhost/
ENV LANG zh_CN.utf8
ENV LC_ALL zh_CN.utf8
ENV JAVA_HOME /opt/localhost/jdk1.8.0_351
ENV MAVEN_HOME /opt/localhost/apache-maven-3.8.6
ENV CLASSPATH $JAVA_HOME/lib/dt.jar:$JAVA_HOME/lib/tools.jar
ENV PATH $PATH:$JAVA_HOME/bin
ENV PATH $PATH:$MAVEN_HOME/bin

Build

docker build -t jdk:1.0.0 .

RUN

FROM jdk:1.0.0
ADD app.jar app.jar
RUN echo 'Asia/Shanghai' >/etc/timezone
EXPOSE 8080
ENTRYPOINT ["sh","-c","java -jar app.jar --spring.profiles.active=$PROFILES"]

# 如果有Python可以使用以下代码
FROM jdk:1.0.0
ADD app.jar app.jar
RUN echo 'Asia/Shanghai' >/etc/timezone
RUN pip3 install -i https://mirrors.aliyun.com/pypi/simple/ --upgrade pip
COPY requirements.txt /python/requirements.txt
RUN pip install -i https://mirrors.aliyun.com/pypi/simple/ -r /python/requirements.txt
EXPOSE 8080
ENTRYPOINT ["sh","-c","java -jar app.jar --spring.profiles.active=$PROFILES"]

docker run -idt \
 -p 10070:8080 \
 --link mysql:mysql \
 -e PROFILES=prod \
 --restart=always \
 --name electric electric:$1

Docker常用命令

docker inspect 容器id  #查看镜像的元数据
docker save -o centos_jdk.tar xxxx/jdk:1.1.1		#将指定镜像保存成 tar 归档文件
docker load < centos_jdk.tar		#导入使用 docker save 命令导出的镜像
docker rmi `docker images -q -f dangling=true`

Docker应用

安装MySQL

docker pull mysql:8.0.30

docker run \
--name mysql \
-d \
-p 13306:3306 \
--restart always \
--network common \
--network-alias mysql \
-v /usr/local/mysql/log:/log \
-v /usr/local/mysql/data:/data \
-v /usr/local/mysql/conf:/conf \
-v /usr/local/mysql/sql:/sql \
-e TZ=Asia/Shanghai \
-e MYSQL_ROOT_PASSWORD=123456 \
mysql:8.0.30

docker exec -it mysql /bin/bash

docker volume inspect mysql


CREATE DATABASE IF NOT EXISTS ises
DEFAULT CHARACTER SET utf8mb4
DEFAULT COLLATE utf8mb4_general_ci;

定时备份Docker下的Mysql数据

Linux

crontab e
*/1 * * * * /shell/mysql/backup-local.sh

crontab -l

service crond restart

# backup-docker.sh 放入docker容器内
time=$(date  +'%Y%m%d')
mysqldump -u root -p123456 django> /sql/django${time}.sql
echo "`date +%Y/%m/%d-%H:%M:%S`数据备份成功"

# backup-local.sh 放入物理机内
docker exec -d mysql /bin/bash -c ". shell/backup.sh"
echo "`date +%Y/%m/%d-%H:%M:%S`数据备份成功" >> /usr/local/mysql/log/backup.log

chmod 777 backup-local.sh

show variables like '%log_bin%';
show master status;
show master logs;

# 查看binlog
show binlog events in 'mysql-bin.000007';

mysqldump -u root -p --master-data=2 --single-transaction -F -B ises > /data/mysqlbackup/fullbackup/ises20230103.sql;


# 恢复增量备份
mysqlbinlog master-bin.000007 | mysql -uroot -p123456

electric

time=$(date  +'%Y%m%d')
mysqldump -u root -p abcd.1234 electric > /sql/electricity${time}.sql
echo "`date +%Y/%m/%d-%H:%M:%S`数据备份成功"

docker exec -d mysql /bin/bash -c ". data/backup-docker.sh"
echo "`date +%Y/%m/%d-%H:%M:%S`数据备份成功" >> /usr/local/mysql/log/backup.log

crontab e
0 0 0 * * *  /home/electric/mysql/shell/backup-local.sh
*/1 * * * * /home/electric/mysql/shell/backup-local.sh
crontab -l

Windows

@echo off
set "Ymd=%date:~,4%%date:~5,2%%date:~8,2%"
md D:\mysite-backup\%Ymd%\
C:\"Program Files"\"mysql-server 5.7.14"\bin\mysqldump --opt  -hx.x.x.x database > D:\database-backup\%Ymd%\database_%Ymd%.sql
echo "数据库备份完毕"

导入大文件（几十G）至表

只针对大表

show global variables like '%secure_file_priv%';
-- 在my.ini 或者 my.cnf中将 secure-file-priv设置如下(导入导出都需要设置)：
secure-file-priv="" -- 允许所有

-- 导出数据文件
select * from django_admin_log into outfile '/sql/django_log.txt';
## 1 张三
## 2 李四
# -- 使用字符分隔符(terminated by )为逗号(',') 。使用字段引用符(enclosed by)为双引号( ' " ')
select * from django_admin_log into outfile '/sql/django_admin_log.txt' fields terminated by ',' enclosed by '"';
## "1" "张三"
## "2" "李四"
select * from django_admin_log into outfile '/sql/django_admin_log.txt' fields terminated by ',' optionally enclosed by '"';
## 1 "张三"
## 2 "李四"

-- 导入数据文件
load data infile 'C:\Users\wangbinzhe\Desktop\fsdownload\django_log.txt' into table django_admin_log;

# 导完之后最好还是改回去

安装MongoDB

docker pull mongo:6.0.2

docker run -d \
-p 27017:27017 \
--name mongo \
--restart always \
-v /data/mongo:/data/db \
mongo:6.0.2

docker run -d \
-p 27017:27017 \
--name mongo \
--restart always \
-v /data/mongo:/data/db \
-e MONGO_INITDB_ROOT_USERNAME=root \
-e MONGO_INITDB_ROOT_PASSWORD=1234 \
mongo:6.0.2

常用命令

DOS

mongosh -u root -p 1234
# 有则切换，无则新建
use user_db
# 需要先use数据库才能删除
db.dropDatabase()

# 创建集合
db.createCollection(name, options)
-- db.createCollection(website)
# 删除集合
db.collection_name.drop()
-- db.website.drop()

# 插入文档
db.collection_name.insert(document)	-- 存在则更新，不存在则插入
db.collection_name.save(document)	-- 若主键存在报异常
-- db.website.insert({name:"玛卡巴卡",url:"baidu.com"})
-- db.website.insert({name:"玛卡巴卡",url:"baidu.com"})
# 查询文档
db.collection_name.find(query, projection)
db.collection_name.findOne(query, projection)
# 更新文档
db.collection_name.update(
    <query>,
    <update>,
    {
        upsert: <boolean>,
        multi: <boolean>,
        writeConcern: <document>
    }
)
-- db.website.update({name:"木樨地西"},{$set:{name:'玛卡巴卡',url:'www.baidu.com'}})
-- db.website.update({_id:ObjectId("6361f5efa42190252addd6df")},{$set:{name:'玛卡巴卡',url:'www.baidu.com'}})
-- 更新多个文档
-- db.website.update({name:"木樨地西"},{$set:{name:'玛卡巴卡',url:'www.baidu.com'}},{multi:true})
db.collection_name.save(
    <document>,
    {
        writeConcern: <document>
    }
)
/*db.course.save(
	{
		"_id" : ObjectId("603209d8e492ab9be9450304"),
		"title" : "MongoDB教程",
		"description" : "MongoDB 是一个 Nosql 数据库",
		"author" : "编程帮",
		"url" : "http://www.biancheng.net/mongodb/index.html",
		"likes" : 996
	}
)*/
# 删除文档
db.collection_name.remove(
    <query>,
    {
        justOne: <boolean>,
        writeConcern: <document>
    }
)
-- db.website.remove({'name':'玛卡巴卡'})
-- 删除其中的第一个文档
-- db.website.remove({'name':'玛卡巴卡'},{justOne:true})
-- 删除集合中的所有文档
-- db.website.remove({})

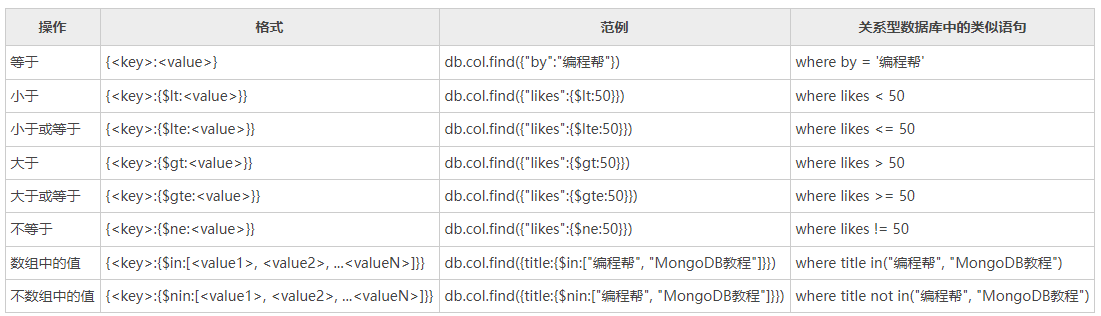

条件查询

AND条件

“title”=“MongoDB教程”同时“by”=“编程帮”

> db.mycol.find({$and:[{title:"MongoDB教程"}, {by:"编程帮"}]}).pretty()
{
        "_id" : ObjectId("6031c02ae492ab9be9450302"),
        "title" : "MongoDB教程",
        "description" : "MongoDB 是一个 Nosql 数据库",
        "by" : "编程帮",
        "url" : "http://www.biancheng.net",
        "tags" : [
                "mongodb",
                "database",
                "NoSQL"
        ],
        "likes" : 999
}

> db.mycol.find({title:"MongoDB教程", by:"编程帮"}).pretty()
{
        "_id" : ObjectId("6031c02ae492ab9be9450302"),
        "title" : "MongoDB教程",
        "description" : "MongoDB 是一个 Nosql 数据库",
        "by" : "编程帮",
        "url" : "http://www.biancheng.net",
        "tags" : [
                "mongodb",
                "database",
                "NoSQL"
        ],
        "likes" : 999
}

OR条件

“title”=“MongoDB教程”或者“by”=“编程帮”

> db.mycol.find({$or:[{title:"MongoDB教程"}, {by:"编程帮"}]}).pretty()
{
        "_id" : ObjectId("6031c02ae492ab9be9450302"),
        "title" : "MongoDB教程",
        "description" : "MongoDB 是一个 Nosql 数据库",
        "by" : "编程帮",
        "url" : "http://www.biancheng.net",
        "tags" : [
                "mongodb",
                "database",
                "NoSQL"
        ],
        "likes" : 999
}
{
        "_id" : ObjectId("6031c02ae492ab9be9450303"),
        "title" : "NoSQL数据库",
        "description" : "NoSQL数据库中没有数据表",
        "by" : "编程帮",
        "url" : "http://www.biancheng.net",
        "tags" : [
                "mongodb",
                "database",
                "NoSQL"
        ],
        "likes" : 100,
        "comments" : [
                {
                        "user" : "admin",
                        "message" : "第一个评论",
                        "dateCreated" : ISODate("2021-02-09T18:35:00Z"),
                        "like" : 0
                }
        ]
}

“where likes > 100 AND (by = '编程帮' OR title = 'MongoDB教程')”

> db.mycol.find({"likes": {$gt:100}, $or: [{"by": "编程帮"},{"title": "MongoDB教程"}]}).pretty()
{
        "_id" : ObjectId("6031c02ae492ab9be9450302"),
        "title" : "MongoDB教程",
        "description" : "MongoDB 是一个 Nosql 数据库",
        "by" : "编程帮",
        "url" : "http://www.biancheng.net",
        "tags" : [
                "mongodb",
                "database",
                "NoSQL"
        ],
        "likes" : 999
}

安装Memcache

// 安装Memcache
docker pull memcached:1.6.17

docker run \
    --name memcache \
    --restart=always \
    -p 11211:11211 \
    -d memcached:1.6.17 memcached \
    -m 64

// 安装可视化工具
docker pull fuyong/treenms:1.0.0

docker run \
--restart=always \
--link memcache:memcache \
-p 11210:8080 --name treenms -d \
fuyong/treenms:1.0.0

安装Redis

docker pull redis:7.0.4

docker run \
--name redis \
--restart=always \
-p 16379:6379 \
--network common \
--network-alias redis \
-v /home/redis/conf/redis.conf:/etc/redis/redis.conf  \
-v /home/redis/data:/data \
-d redis:7.0.4 \
redis-server /etc/redis/redis.conf \
--appendonly yes \
--requirepass 654321

安装tomcat

docker run -d -p 8080:8080 \
--restart=always \
--name tomcat \
-v /usr/local/tomcat/webapps:/usr/local/tomcat/webapps \
tomcat:7.0.109


docker exec -it tomcat /bin/bash

安装GitLab

vim install_gitlab.sh

#!/bin/bash
docker run -d -p 8443:443 -p 8080:80 -p 8022:22 \
--name gitlab \
--restart always  \
-v /data/gitlab/config:/etc/gitlab \
-v /data/gitlab/log:/var/log/gitlab \
-v /data/gitlab/data:/var/opt/gitlab \
gitlab/gitlab-ce

安装Nginx

docker pull nginx:1.23.1

docker run -p 80:80 \
--name nginx \
-d nginx:1.23.1

mkdir /usr/local/nginx/conf
cd /usr/local/nginx/conf
docker container cp nginx:/etc/nginx .
docker stop nginx
docker rm nginx

docker run -p 80:80 \
--name nginx \
--restart=always \
--network common \
--network-alias nginx \
-v /home/nginx/www:/usr/share/nginx/html \
-v /home/nginx/file:/file \
-v /home/nginx/logs:/var/log/nginx \
-v /home/nginx/conf:/etc/nginx \
-d nginx:1.23.1

docker exec -it nginx /bin/bash

安装MQTT

Mosquitto

#TCP TLS WS WSS
docker run -it --name=mosquitto --privileged \
-p 1883:1883 -p 1884:1884 -p 9001:9001 -p 9002:9002 \
-v /home/mosquitto/config:/mosquitto/config \
-v /home/mosquitto/data:/mosquitto/data \
-v /home/mosquitto/log:/mosquitto/log \
-d eclipse-mosquitto:latest

用户名密码文件配置

#先创建密码文件并添加一个用户
mosquitto_passwd -c passwd wonde
#再次向密码文件中添加用户
mosquitto_passwd passwd wond 123456

mosquitto.conf 配置

# MQTT协议(tcp)
listener 1883

# 使用tls
#listener 1884
#cafile mosquitto\crt\root.crt     #根证书
#certfile mosquitto\crt\public.crt #公共证书
#keyfile mosquitto\crt\cloud.key   #密钥文件

# ws协议
listener 9001
protocol websockets

# 使用wss
#listener 9002
#protocol websockets
#cafile mosquitto\crt\root.crt     #根证书
#certfile mosquitto\crt\public.crt #公共证书
#keyfile mosquitto\crt\cloud.key   #密钥文件

# 配置密码文件
password_file /mosquitto/config/passwd
#allow_anonymous true # 默认开启

persistence true
persistence_location /mosquitto/data/
log_dest file /mosquitto/log/mosquitto.log

应用配置

# 应用配置
mosquitto -c mosquitto.conf –v
# 或者直接重启容器
#docker restart mosquitto

发布

import paho.mqtt.client as mqtt
import time

def on_connect(client, userdata, flags, rc):
    print(f"Connected with result code {rc}")

client = mqtt.Client()
client.on_connect = on_connect
client.connect("156.227.6.31", 1883, 60)

# 每间隔 1 秒钟向 raspberry/topic 发送一个消息，连续发送 5 次
for i in range(5):
    # 四个参数分别为：主题，发送内容，QoS, 是否保留消息
    client.publish('lklbjn/pulish', payload=i, qos=0, retain=False)
    print(f"send {i} to raspberry/topic")
    time.sleep(1)

client.loop_forever()

订阅

# subscriber.py
import paho.mqtt.client as mqtt
import ssl

def on_connect(client, userdata, flags, rc):
    print(f"Connected with result code {rc}")
    # 订阅，需要放在 on_connect 里
    client.subscribe("lamp", 1)


# 回调函数，当收到消息时，触发该函数
def on_message(client, userdata, msg):
    print(f"{msg.topic} {msg.payload}")

client = mqtt.Client(transport="websockets")
# client = mqtt.Client()
client.ws_set_options(path='/mqtt')  # 设置WebSocket路径

client.on_connect = on_connect
client.on_message = on_message

# context = ssl.SSLContext(ssl.PROTOCOL_TLSv1_2)
# context.check_hostname = False
# client.tls_set_context(context)

# 设置遗嘱消息，当设备断电，或者网络出现异常中断时，发送遗嘱消息给其他客户端
client.will_set('lamp', b'{"status": "close link"}', 1)

# 设置用户名密码(如果有的话)
# client.username_pw_set('wonde', '123456')
# 创建连接，三个参数分别为 broker 地址，broker 端口号，保活时间
# client.connect("156.227.6.31", 1883, 60) # tcp连接
client.connect("156.227.6.31", 8083, 60)  # ws连接

# 设置网络循环堵塞，在调用 disconnect() 或程序崩溃前，不会主动结束程序
client.loop_forever()

EMQX

## 企业版-要钱的
docker run -d --name emqx-ee -p 1883:1883 -p 8081:8081 -p 8083:8083 -p 8883:8883 -p 8084:8084 -p 18083:18083 emqx/emqx-ee:latest

## 社区版-开源免费
docker run -d \
--restart=always \
--name emqx \
-p 1883:1883 -p 8083:8083 -p 8084:8084 -p 8883:8883 -p 18083:18083 \
-v /opt/emqx/log:/opt/emqx/log \
emqx/emqx:latest

#控制台：http://localhost:18083/
#默认用户名密码：admin/public

Dockerfile构建java运行环境

Docker常用命令

Docker应用

安装MySQL

定时备份Docker下的Mysql数据

Linux

Windows

导入大文件（几十G）至表

安装MongoDB

常用命令

DOS

条件查询

AND条件

OR条件

安装Memcache

安装Redis

安装tomcat

安装GitLab

安装Nginx

安装MQTT

Mosquitto

用户名密码文件配置

mosquitto.conf 配置

应用配置

发布

订阅

EMQX

Linux常用命令

K8S安装与配置

binz
